I. product overview
It is suitable for cold storage cabinets, display cabinets and other equipment needed for temperature measurement and display.
Ii. Product features
1. The connection mode between the LCD data port and the circuit board drive port is pin-welded, which effectively avoids the product defects, non-display and dark display caused by the wet oxidation of the circuit board drive port and the short circuit of the conductive rubber strip. The anti-seismic performance is better. At present, the main competitive products or conductive rubber strip connection, the product is prone to moisture display fault.

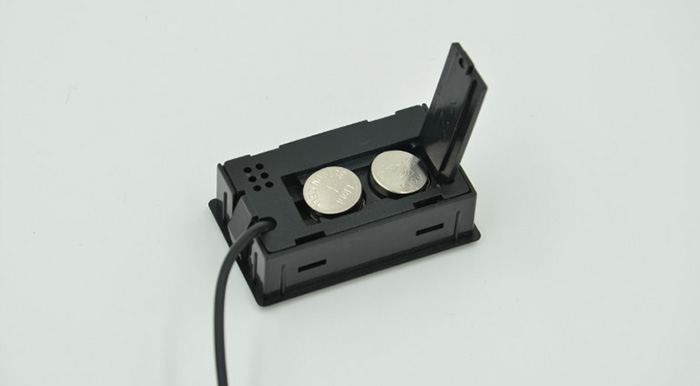

2. Two button batteries power supply, sufficient power and durable.
3. Compact modeling, digital temperature LCD display, low power consumption.
Iii. Main functions
The display table is embedded structure, simple and beautiful shape, digital temperature LCD display, easy to distinguish; Strong anti-interference; Two button batteries
Technical parameters
Cardiac temperature measuring range: - 50 ℃ ~ + 80 ℃
Temperature display resolution: 0.1
Cardiac temperature measuring accuracy: + / - 1 ℃
Power supply: two button batteries (LR44, 1.5v)
... probe line length: 1 meter plastic shell probe
V. specifications and dimensions
Overall machine size: 48*28.5*16mm
Installation size: 46*26.6mm
Design：
