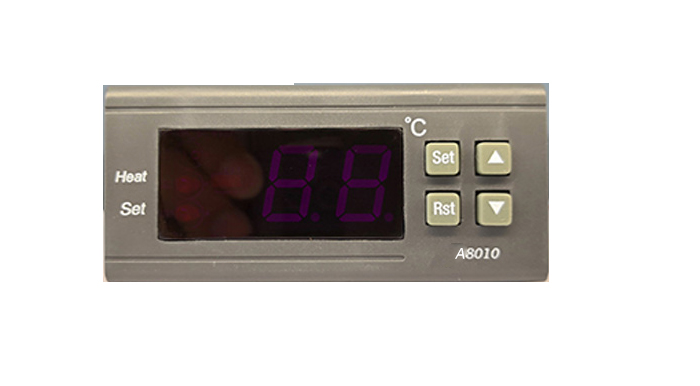

I. product overview
Applicable to all kinds of high temperature cold storage, straight cold cabinet and high temperature refrigeration equipment control.
Ii. Product features
1. Upper and lower limit setting is adopted for temperature control

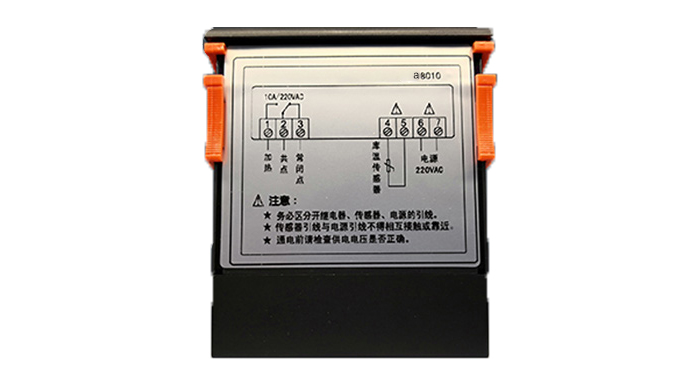

2. A set of normally open and normally closed contact outputs
3. Over-temperature alarm function (buzzer), the output of alarm relay is optional
Iii. Main functions
Refrigeration, single sensor, temperature correction.
Technical parameters
Power supply: 220VAC +10%-15%, 50/60hz;
Power consumption: less than 3W;
Measuring range: being - 50 ℃ ~ 99 ℃;
Temperature control range: being - 50 ℃ ~ 90 ℃;
Do the temperature resolution: 1 ℃;
Temperature measuring accuracy being: - 50 ℃ ~ 70 ℃ + / - 1 ℃, the rest of the plus or minus 2 ℃;
The refrigerating output node capacity: 10A/277VAC can directly drive the single-phase 1/2hp and below compressors

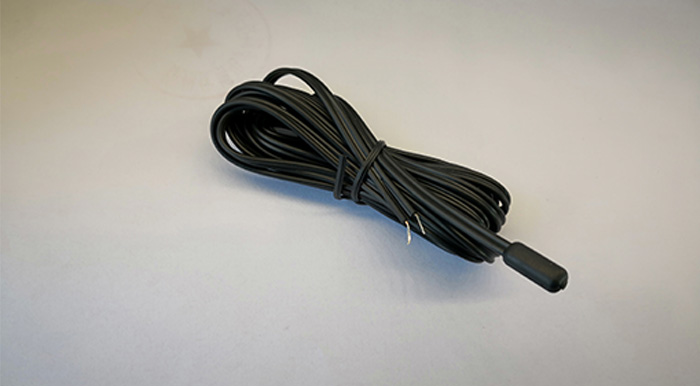

Sensor type: NTC sensor
Front panel protection grade: IP65;
A working environment temperature being: 0 ℃ ~ 60 ℃;
Humidity in working environment: 20 ~ 85% (no condensation).
Do the storage temperature: - 30 ℃ ~ 75 ℃;
V. specifications and dimensions
Plate size: 75 by 34.5 (mm);
Size of mounting hole: 71 x 29 (mm);
Size: 75 x width 34.5 x depth 85 (mm)
Design：
